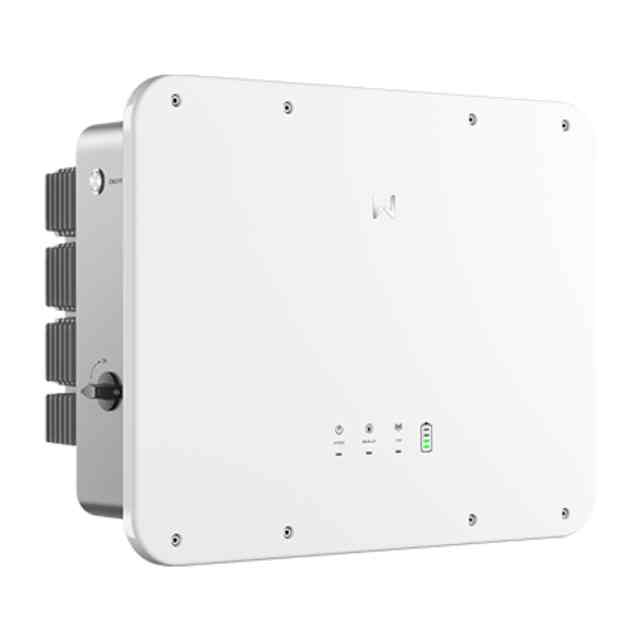

GoodWe ES Uniq Series 10kW single-phase Hybrid Inverter

 400,000

• Brand: GoodWe
• Model: GW10K-ES-C10
• Inverter Type: Hybrid Solar Inverter
• Rated Power: 10kW
• Phase: Single Phase
• Battery Type: Lithium-Ion (48V)
• Max PV Input Power: 20,000W
• Max PV Input Voltage: 600V
• MPPT Voltage Range: 60V – 550V
• Start-up Voltage: 58V
• MPPT Trackers: 2
• Strings per MPPT: 2
• Max Input Current: 32A / 32A
• Max Efficiency: 97.6%
• MPPT Efficiency: 99.9%
• Grid Output Power: 10,000VA
• Max Grid Output Power: 11,000VA
• Max AC Output Current: 50A
• Output Voltage: 220V / 230V / 240V
• Frequency: 50/60Hz
• Cooling: Smart Fan Cooling
• Display: LED, WLAN + App
• Communication: RS485, CAN, LAN, WiFi
• Protection Rating: IP65
• Operating Temperature: -35°C to +60°C
• Weight: 29kg
• Dimensions: 560 × 444.5 × 226mm
• Installation: Wall Mounted
• Backup Switching Time: <10ms
• Parallel Support: Up to 16 Inverters
• Application: Residential Energy Storage Systems

Category:

Description

The ES Uniq Series single-phase Hybrid Inverter line from GoodWe is specifically designed for residential applications, providing cost-effective energy storage solutions with a capacity of 10kW. The ES Uniq Series is designed to operate smoothly with 182mm modules. More importantly, it can manage up to 200% overload, ensuring reliable performance, especially during peak usage times. The ES Uniq Series allows for parallel connection of up to 16 inverters for both on-grid and off-grid operation, meeting expanding energy requirements. It also supports generator management and enables the storage of energy generated by the generator.
